90¦Ìm flexible interdigital electrode PET capacitance array scientific research experiment sensor chip IDE biosensor

90¦Ìm flexible interdigital electrode PET capacitance array scientific research experiment sensor chip IDE biosensor

¡¾Numbering¡¿BK2021012706 ¡¾CAS¡¿cas
¡¾Item No.¡¿BK2021012706 ¡¾specification¡¿
5 minutes to choose the product plan

E-mail£ºcro@szbknm.com

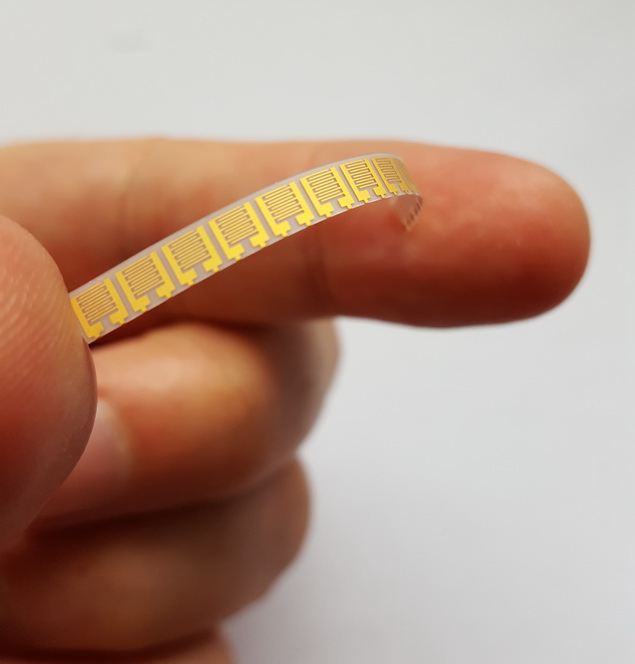

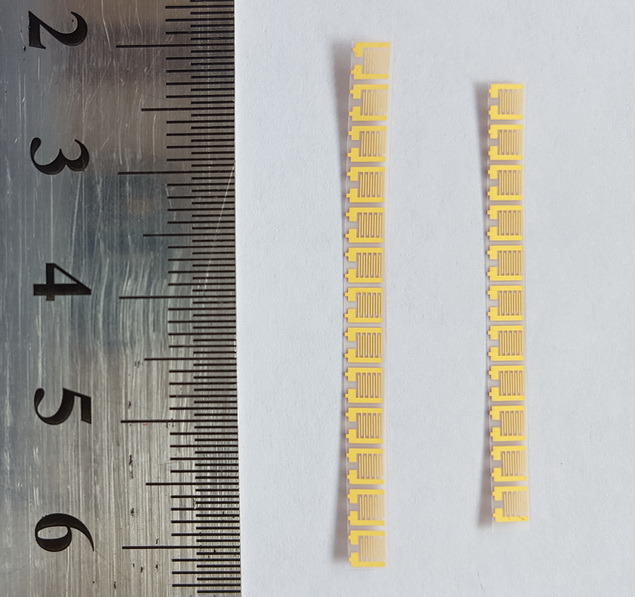

Flexible PET interdigital electrode IDE medical biogas humidity sensor chip capacitor array

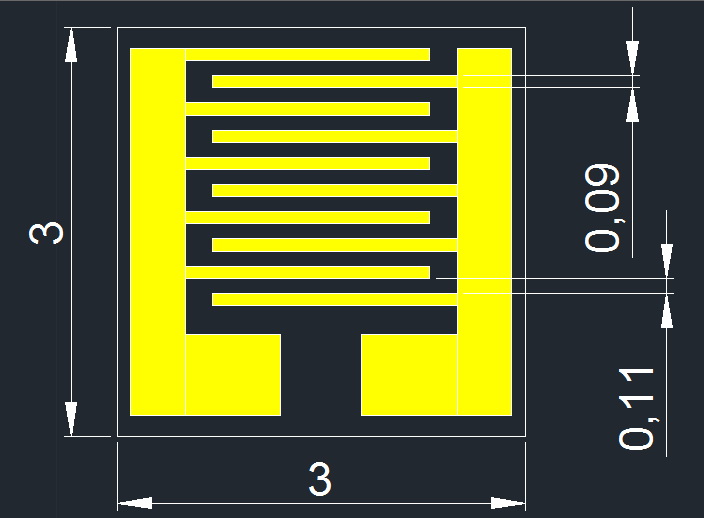

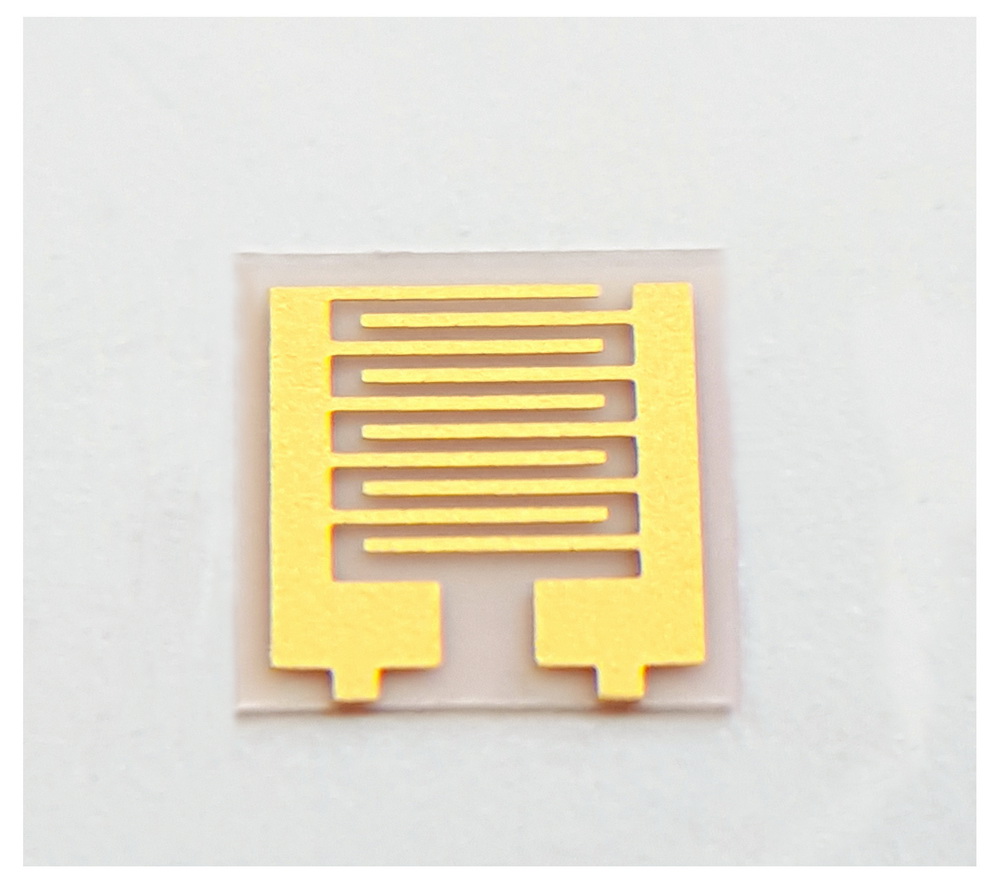

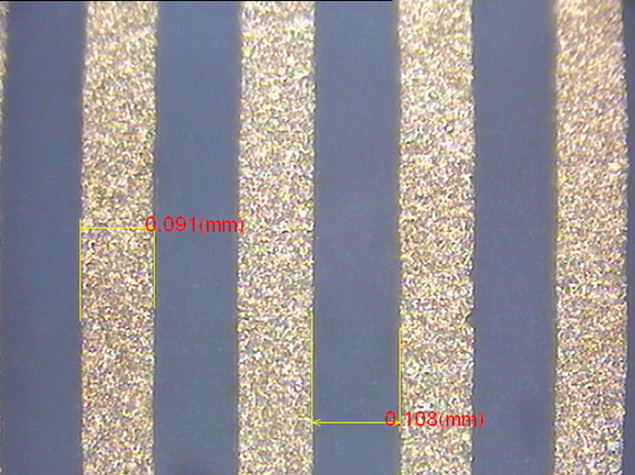

1. Substrate: Polyethylene terephthalate (PET), thickness 75um, external dimension 3mm*3mm. 2. Line width 90um, line spacing 110um, finger length 1.8mm; number of interdigital pairs: 5 pairs (10 fingers). 3. Metal layer structure Cu/Ni/Au, the thickness is 12um, 1um, 1um respectively.


4. Electrode operating temperature range: -50¡æ~120¡æ.
5. Mainly used in various chemical, physical and medical sensors, with reliable performance and stable quality. 6. Large quantity and price favorably.

We provide a variety of interdigital electrodes, including different shapes, different sizes, different line widths and distances, different substrates (alumina ceramics, PI/PET flexible materials, monocrystalline silicon), and different processes (thick film process, PCB process, MEMS process).


Warm tips: Suzhou Beike nano products are only used for scientific research, not for human body,different batches of products have different specifications and performance
