50¦Ìm flexible interdigital electrode PET capacitance array humidity biomedical smart wearable sensor IDE

50¦Ìm flexible interdigital electrode PET capacitance array humidity biomedical smart wearable sensor IDE

¡¾Numbering¡¿BK2021012702 ¡¾CAS¡¿cas
¡¾Item No.¡¿BK2021012702 ¡¾specification¡¿
5 minutes to choose the product plan

E-mail£ºcro@szbknm.com

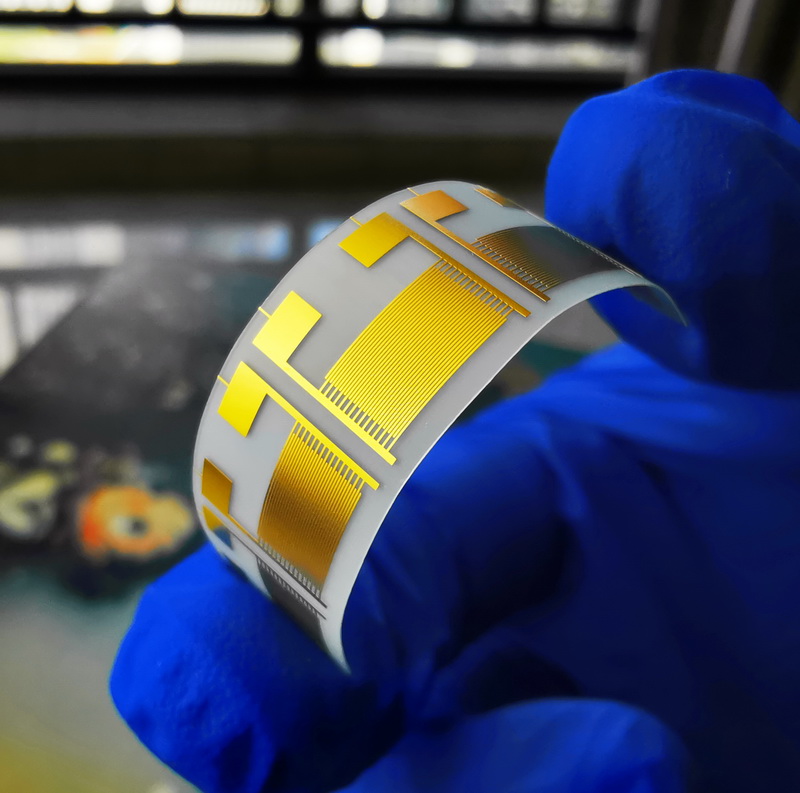

Flexible PET interdigital electrode IDE medical gas biological humidity sensor smart wear

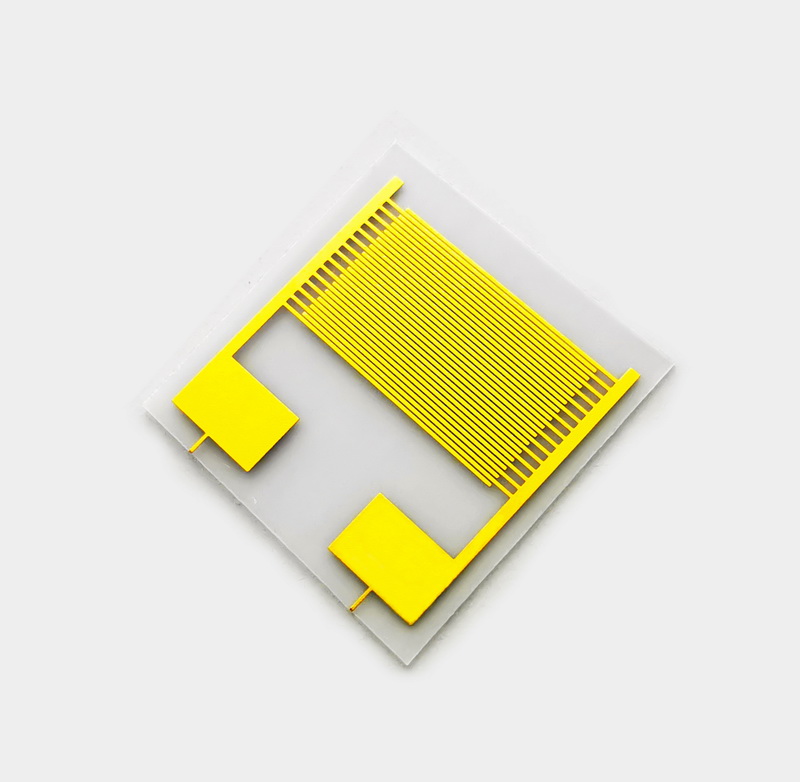

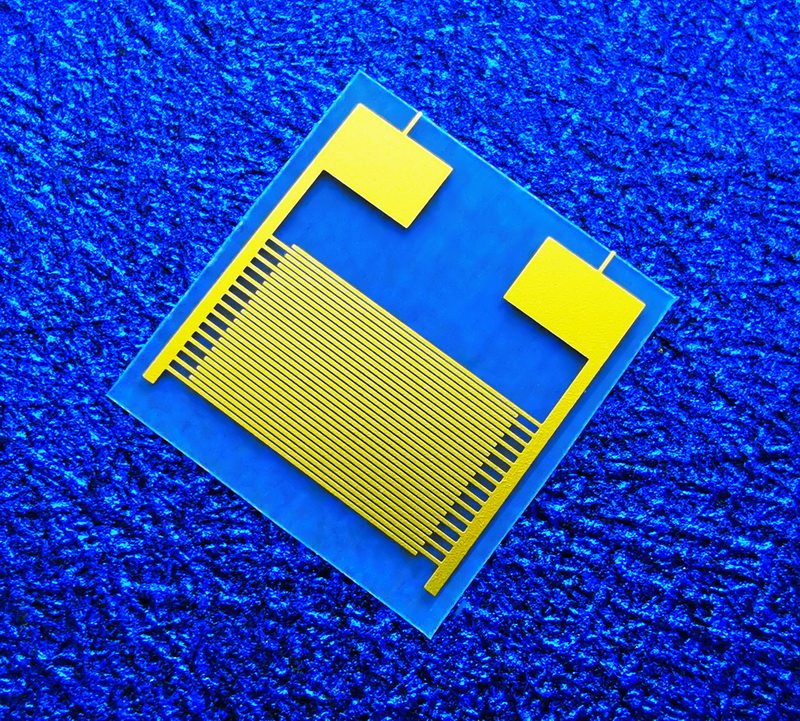

1. Electrode base material: polyethylene terephthalate (PET), thickness 60um, external dimension 10mm*10mm. It has a reinforced backing and is easy to operate.

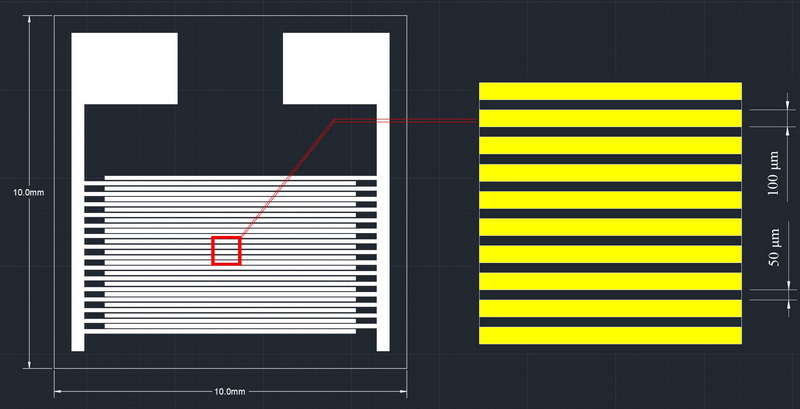

2. The line width is 100 ¦Ìm, the line distance is 50 ¦Ìm, and the length is 7.7mm. Interdigital pairs: 15 pairs (30 fingers). 3. The metal layer structure is Cu/Ni/Au, and the thickness is 12 ¦Ìm, 3 ¦Ìm, and 1 ¦Ìm respectively.
4. Electrode temperature range: -50¡æ~120¡æ.
5. Mainly used in various chemical, physical and medical sensors, with reliable performance and stable quality. 6. Large quantity and price favorably.

We provide a variety of interdigital electrodes, including different shapes, different sizes, different line widths and distances, different substrates (alumina ceramics, PI/PET flexible materials, monocrystalline silicon), and different processes (thick film process, DPC process, MEMS process).


Warm tips: Suzhou Beike nano products are only used for scientific research, not for human body,different batches of products have different specifications and performance
