100¦Ìm flexible interdigital electrode capacitance array gas biological humidity sensor chip PI scientific research

100¦Ìm flexible interdigital electrode capacitance array gas biological humidity sensor chip PI scientific research

¡¾Numbering¡¿BK2021012603 ¡¾CAS¡¿cas
¡¾Item No.¡¿BK2021012603 ¡¾specification¡¿
5 minutes to choose the product plan

E-mail£ºcro@szbknm.com

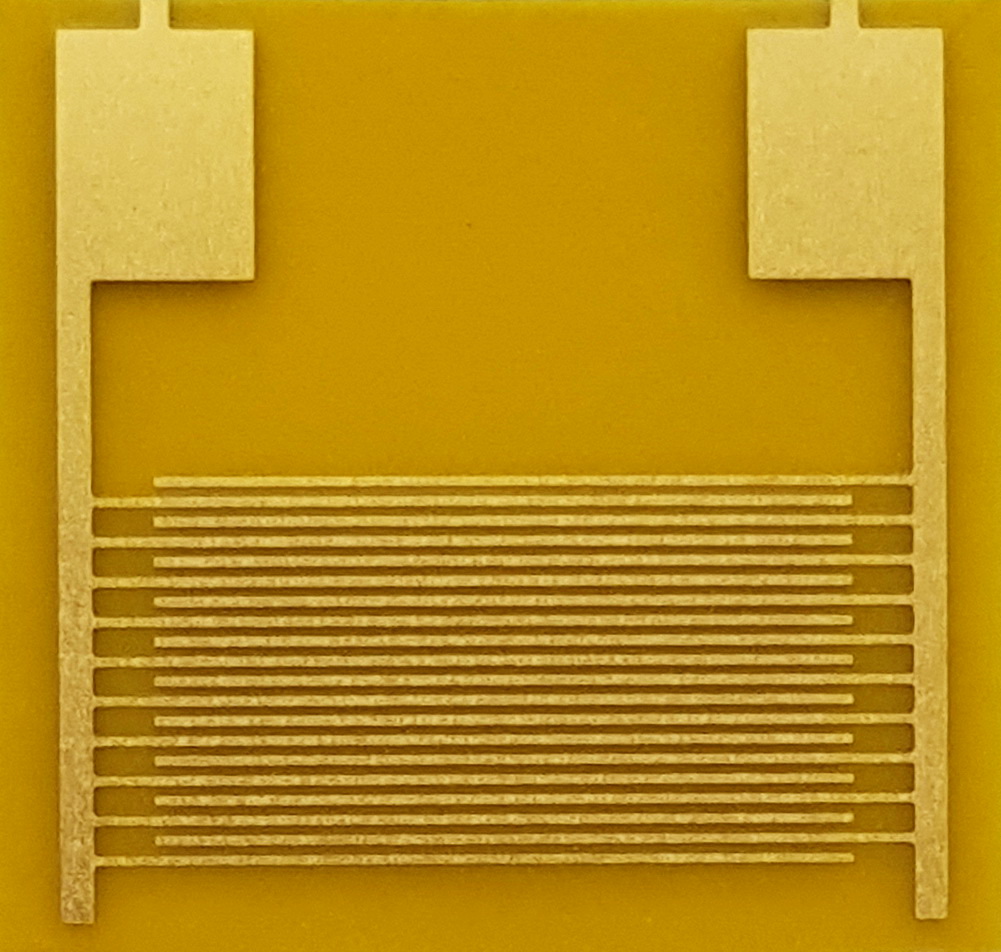

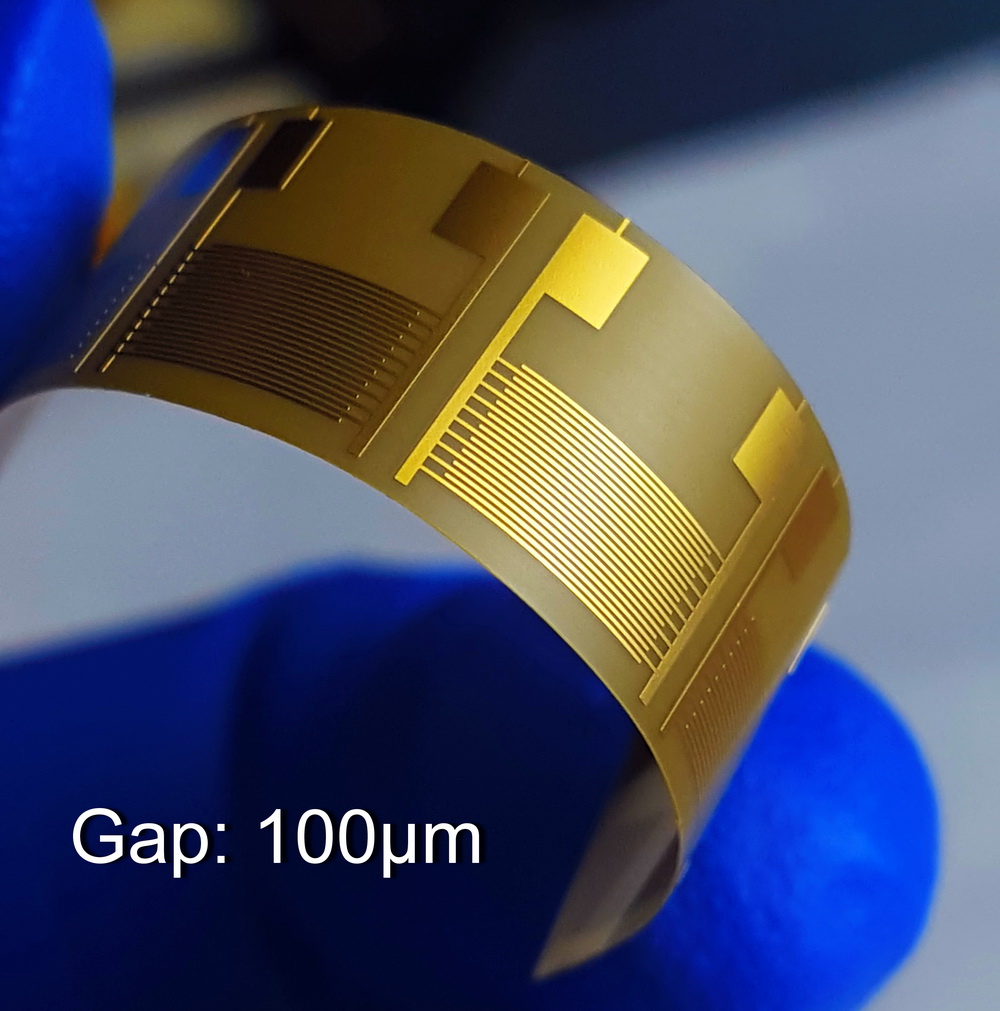

Flexible PI interdigital electrode IDE medical gas biological humidity sensor smart wear 1. Electrode substrate: polyimide (PI), thickness 13um, dimensions 10mm*10mm.
2. The line width is 100 ¦Ìm, the line distance is 100 ¦Ìm; the finger length is 7.7mm; the number of interdigital pairs: 10 pairs (20 fingers). 3. The metal layer structure is Cu/Ni/Au, and the thickness is 12 um, 1 um, and 1 um, respectively.
4. Electrode temperature range: -50¡æ¡«120¡æ.
5. Mainly used in various chemical, physical and medical sensors, with reliable performance and stable quality. 6. Large quantity and price favorably.

We provide a variety of interdigital electrodes, including different shapes, different sizes, different line widths and distances, different substrates (alumina ceramics, PI/PET flexible materials, monocrystalline silicon), and different processes (thick film process, DPC process, MEMS process).


Warm tips: Suzhou Beike nano products are only used for scientific research, not for human body,different batches of products have different specifications and performance
