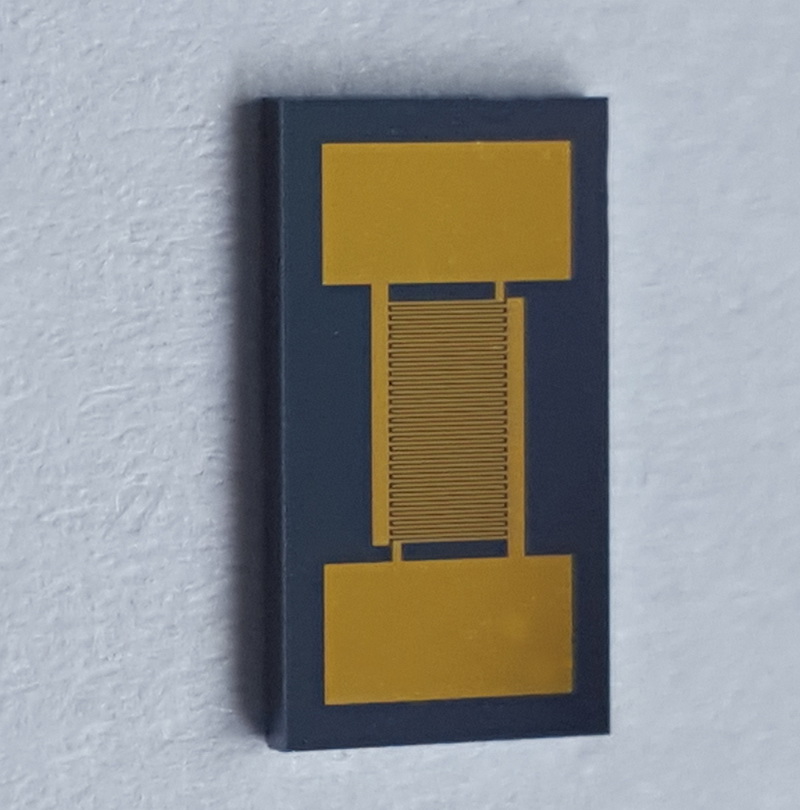

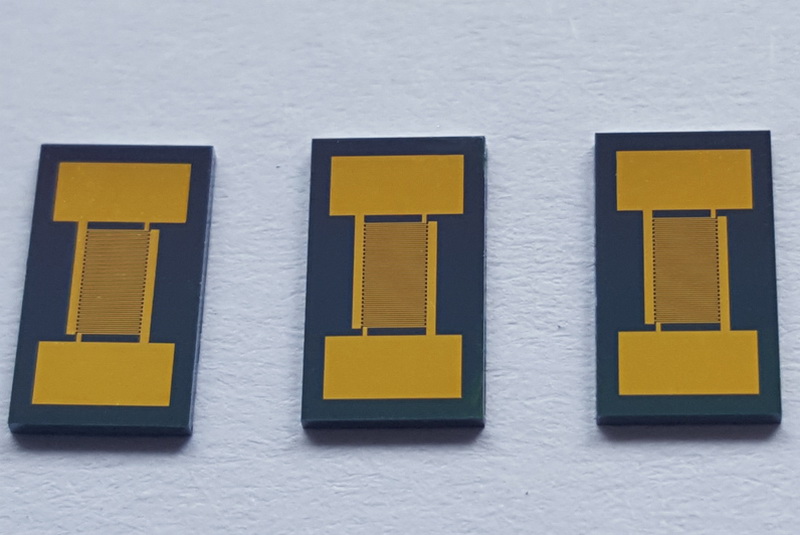

1. Dimensions: 4mm*7mm*0.52mm.

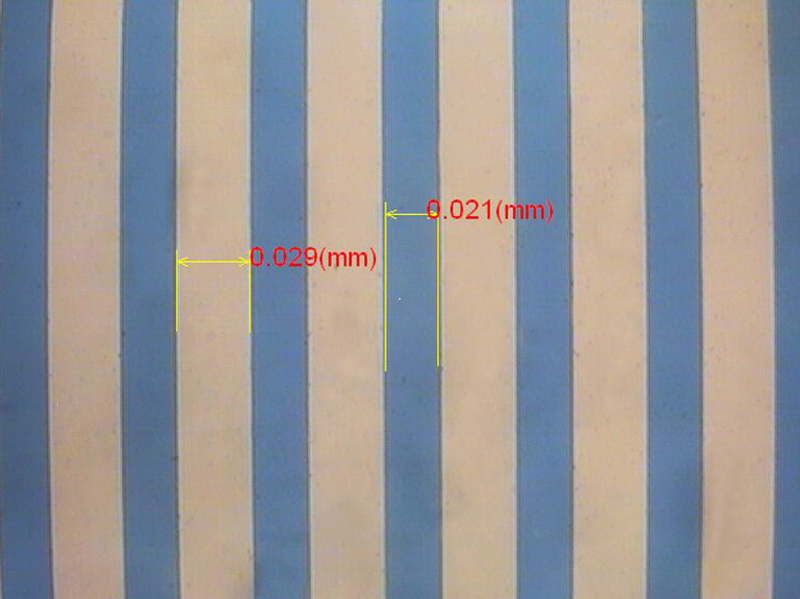

2. Line width: 30 u m, line spacing: 20 u m, finger length: 1.4mm, number of interdigital fingers: 26 (52 fingers).
3. The electrode substrate is single crystal silicon, and the surface of the silicon wafer grows Si02 with a thickness of 300nm;
4. Metal layer structure: Cr/Au, thickness is 10nm, 100nm respectively;
5. Electrode operating temperature range: -150¡æ¡«500¡æ;
6. Mainly used in various chemical, physical and biological sensors, with reliable performance and stable quality.
Warm tips: Suzhou Beike nano products are only used for scientific research, not for human body,different batches of products have different specifications and performance |
