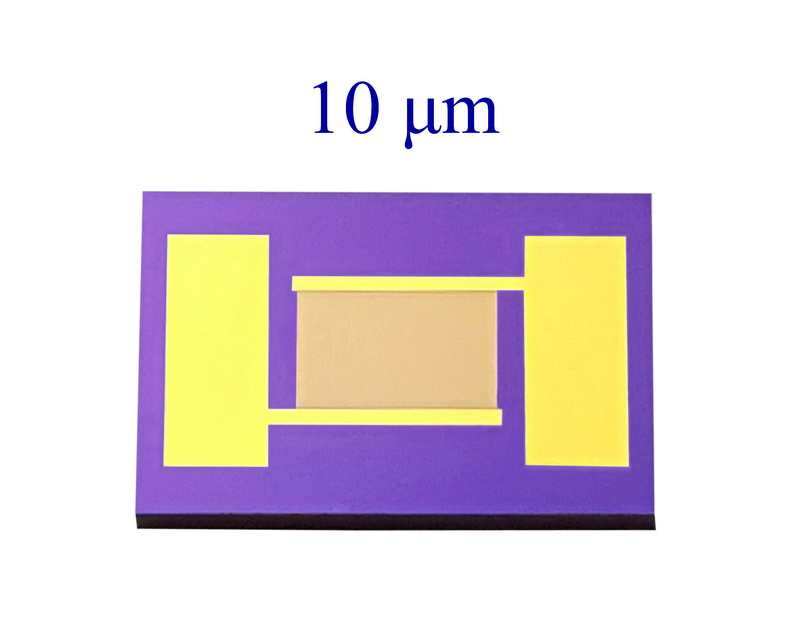

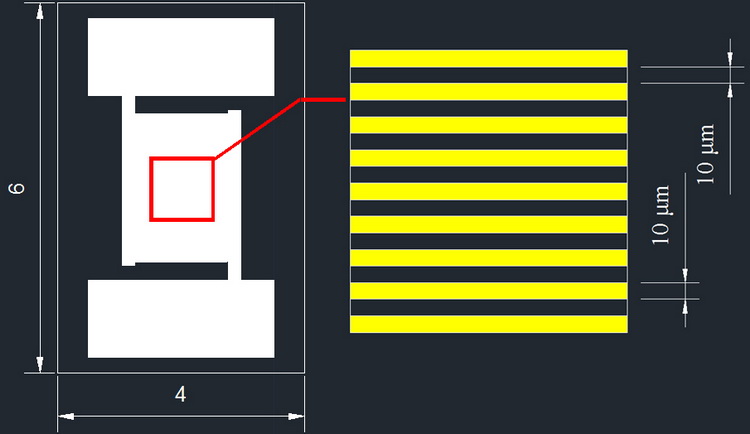

1. Dimensions: 4mm*6mm*0.52mm.

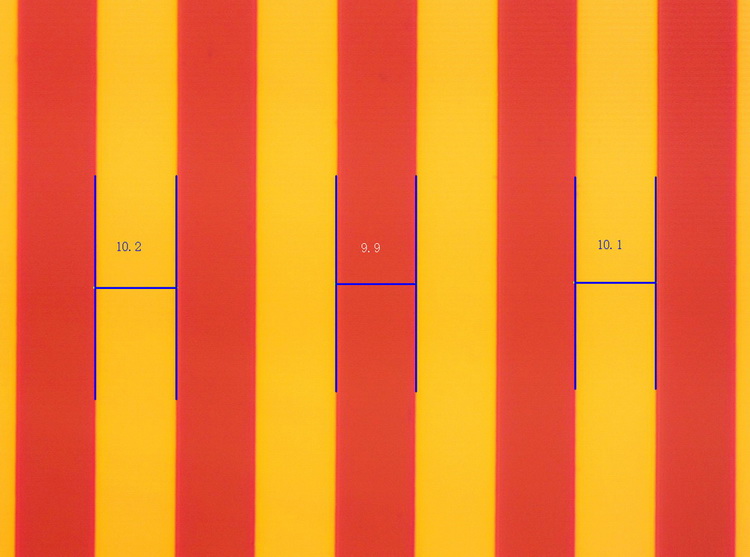

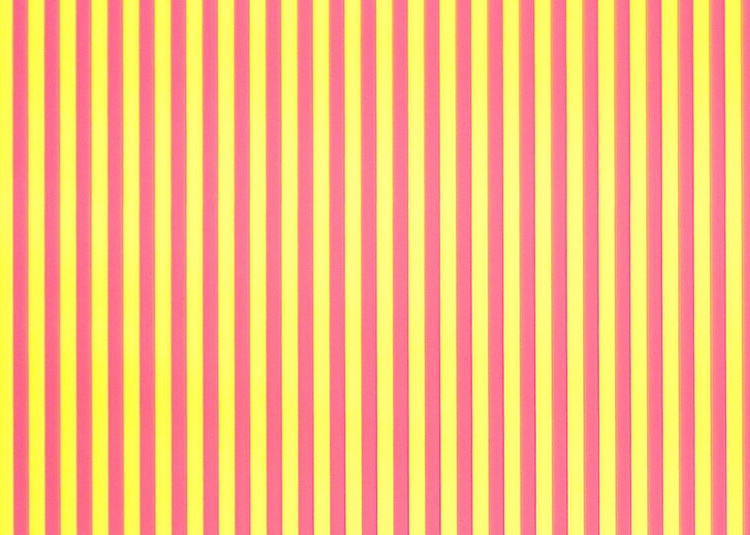

2. Line width: 10um, line spacing: 10um, finger length: 1.5mm, interdigital logarithm: 60 (120 fingers).
3. The electrode substrate is single crystal silicon, and siO2 is grown on the surface of the silicon wafer with a thickness of 300nm;
4. Metal layer structure: Cr/Au, thickness is 10nm, 100nm respectively;
5. Electrode operating temperature range: -150¡æ~500¡æ;
6. Mainly used in various chemical, physical and medical sensors, with reliable performance and stable quality.
Warm tips: Suzhou Beike nano products are only used for scientific research, not for human body,different batches of products have different specifications and performance |
