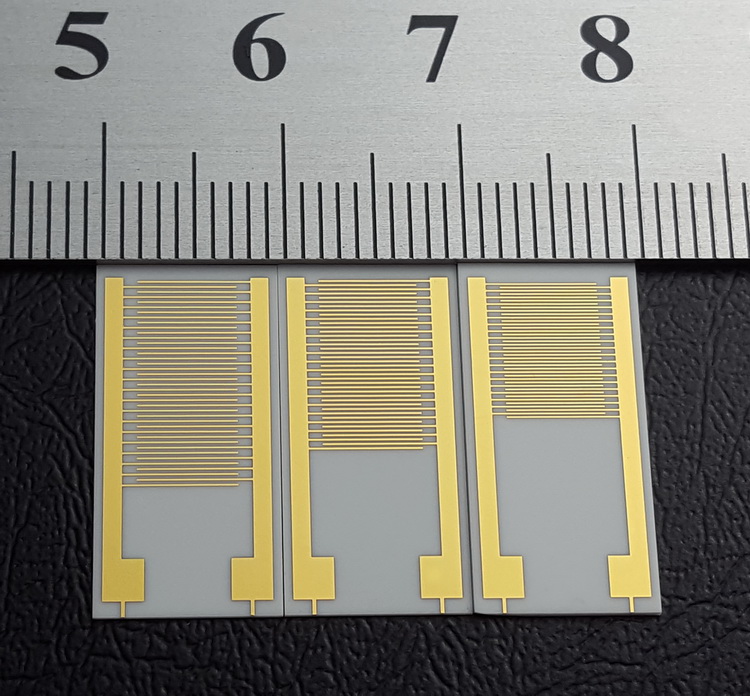

150μm large size interdigital electrode ceramic capacitor array gas humidity biosensor chip 10X20
| 【Numbering】BK2021012505 | 【CAS】cas | ||
| 【Item No.】BK2021012505 | 【specification】 | ||
|
|||
1. Substrate: alumina ceramics; overall dimensions: 20mm*10mm.
2. Line width: 100 um, line spacing: 150 um, finger length: 6.3mm. Interdigital pairs: 20 pairs (40 fingers).
3. Metal layer structure: Ti/Cu/Ni/Au, thickness: 0.1um, 2um, 1um, 1um.
4. Applicable temperature: -150℃~350℃.
5. Large size and large pad make it easier to operate and observe.
Message
2. Line width: 100 um, line spacing: 150 um, finger length: 6.3mm. Interdigital pairs: 20 pairs (40 fingers).
3. Metal layer structure: Ti/Cu/Ni/Au, thickness: 0.1um, 2um, 1um, 1um.
4. Applicable temperature: -150℃~350℃.
5. Large size and large pad make it easier to operate and observe.
We provide a variety of interdigital electrodes, including different shapes, different sizes, different line widths and distances, different substrates (alumina ceramics, PI/PET flexible materials, monocrystalline silicon), and different processes (thick film process, DPC process, MEMS process).
