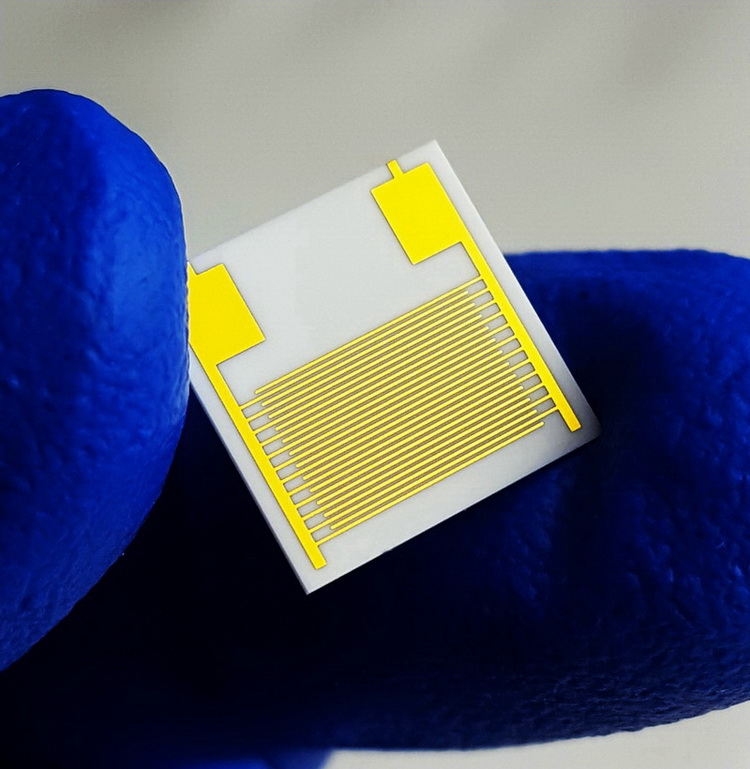

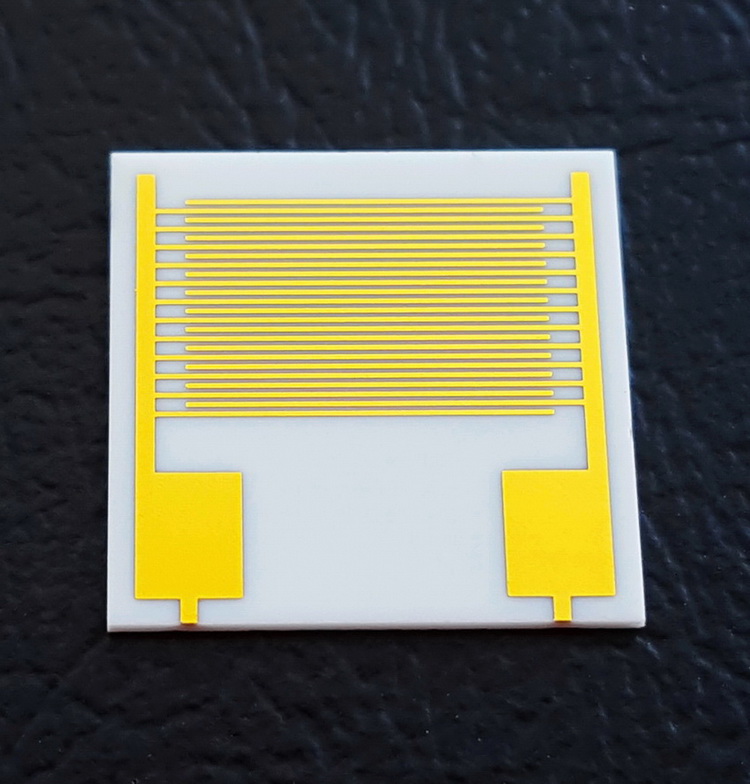

100¦Ìm interdigital gold electrode film circuit IDE capacitor array gas humidity biosensor chip

100¦Ìm interdigital gold electrode film circuit IDE capacitor array gas humidity biosensor chip

¡¾Numbering¡¿BK2021012502 ¡¾CAS¡¿cas
¡¾Item No.¡¿BK2021012502 ¡¾specification¡¿
5 minutes to choose the product plan

E-mail£ºcro@szbknm.com

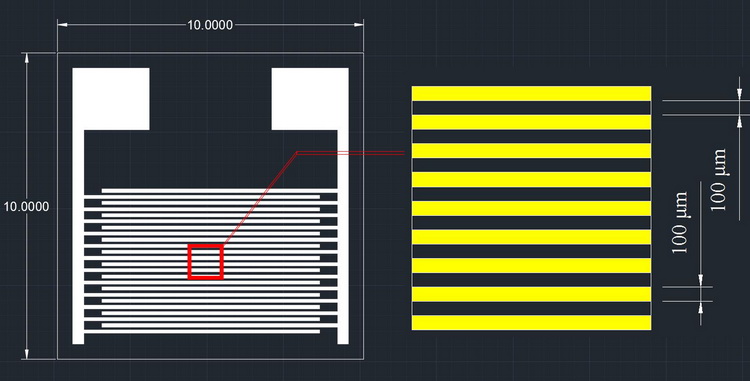

1. Substrate: alumina ceramic, thickness 0.38mm; external dimension: 10mm*10mm.


2. Line width: 100 ¦Ìm, line spacing: 100 ¦Ìm, finger length: 7.7mm. Interdigital pairs: 12 pairs (24 fingers).


3. Metal layer structure: Ti/Cu/Ni/Au, thickness: 0.1um, 5um, 4um, 1um.


4. Applicable temperature: -150¡æ~350¡æ.

5. Large pads make it easier to operate and observe in experiments.
We provide a variety of interdigital electrodes, including different shapes, different sizes, different line widths and spacing, different substrates (alumina ceramics, PI/PET flexible materials, monocrystalline silicon), and different processes (thick film process, DPC process, MEMS process).


Warm tips: Suzhou Beike nano products are only used for scientific research, not for human body,different batches of products have different specifications and performance
