100¦Ìm large size ceramic interdigital electrode capacitance array biogas humidity sensor chip 10X20

100¦Ìm large size ceramic interdigital electrode capacitance array biogas humidity sensor chip 10X20

¡¾Numbering¡¿BK2021012501 ¡¾CAS¡¿cas
¡¾Item No.¡¿BK2021012501 ¡¾specification¡¿
5 minutes to choose the product plan

E-mail£ºcro@szbknm.com

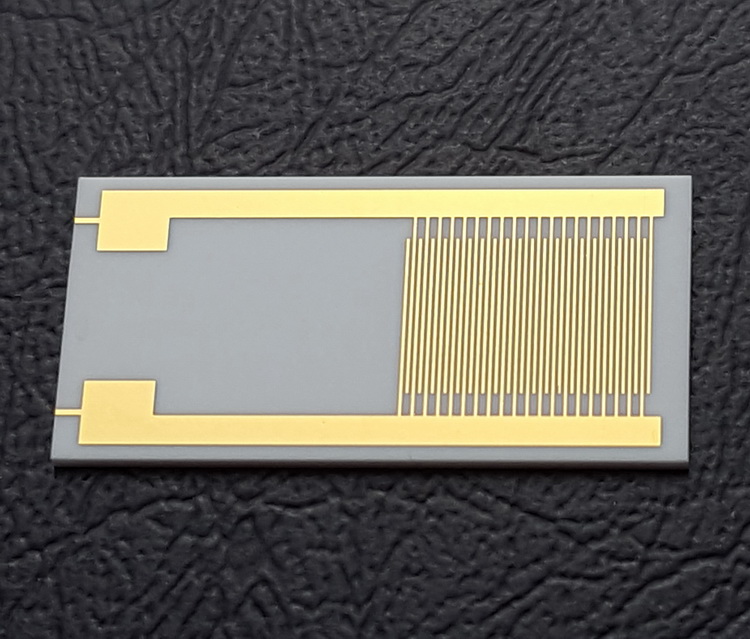

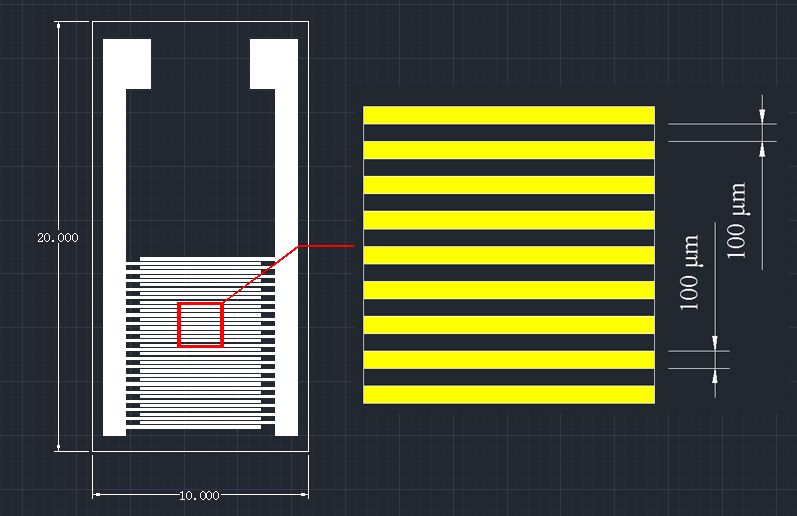

1. Substrate: alumina ceramics; overall dimensions: 20mm*10mm.


2. Line width: 100 um, line spacing: 100 um, finger length: 6.3mm. Interdigital pairs: 20 pairs (40 fingers).


3. Metal layer structure: Ti/Cu/Ni/Au, thickness: 0.1um, 5um, 4um, 1um.


4. Applicable temperature: -150¡æ~350¡æ.

5. Large size and large pad make it easier to operate and observe.

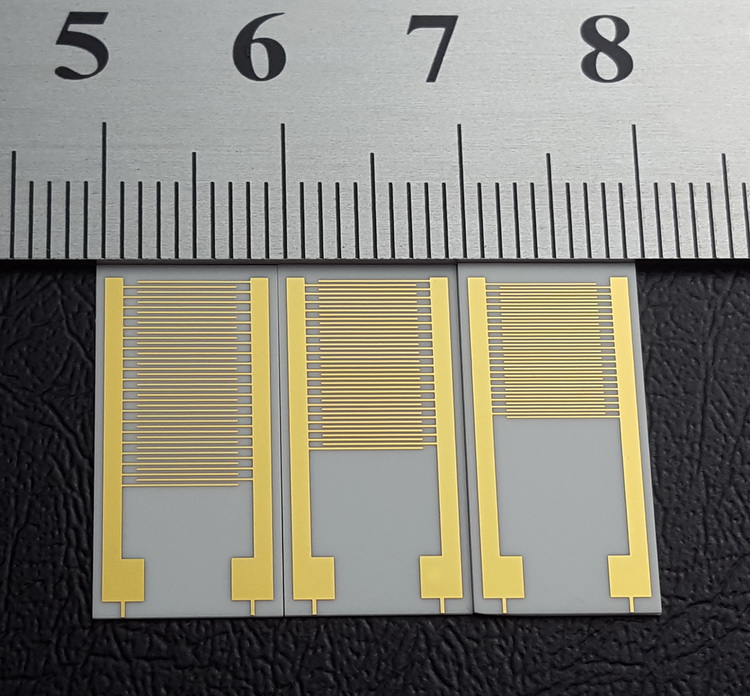

We provide a variety of interdigital electrodes, including different shapes, different sizes, different line widths and distances, different substrates (alumina ceramics, PI/PET flexible materials, monocrystalline silicon), and different processes (thick film process, DPC process, MEMS process).


Warm tips: Suzhou Beike nano products are only used for scientific research, not for human body,different batches of products have different specifications and performance
